What is a building envelope? Public rules compared with private lot envelopes

A building envelope is the three-dimensional space a dwelling may occupy on its lot. In Australia, the term is commonly used for two different types of envelope: one derived from public rules and one drawn for a specific lot.

The first is derived: take the lot's shape, subtract the front, side and rear setbacks the public rules require, apply their wall-height planes (the rules that push walls inward as they rise), and the space left over is the envelope. It can be reproduced from the applicable rules and the lot's dimensions.

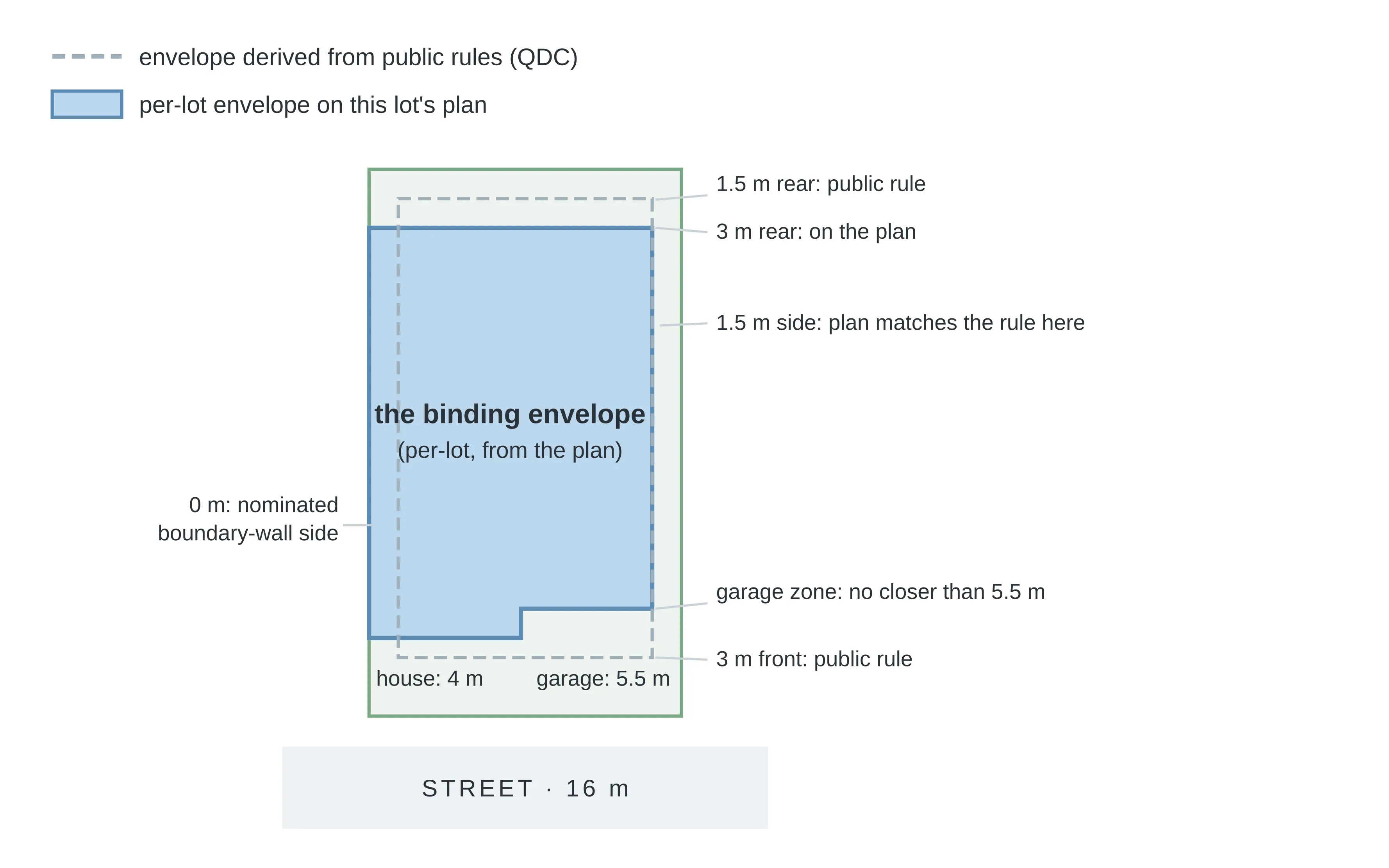

The second is drawn: an estate fixes an envelope for each individual lot, as a diagram registered with the plan of subdivision (the registered plan that creates the lots) or issued in the estate's own paperwork. Where a drawn envelope exists it usually binds, and it can be stricter than, or simply differently shaped from, anything the public rules would produce.

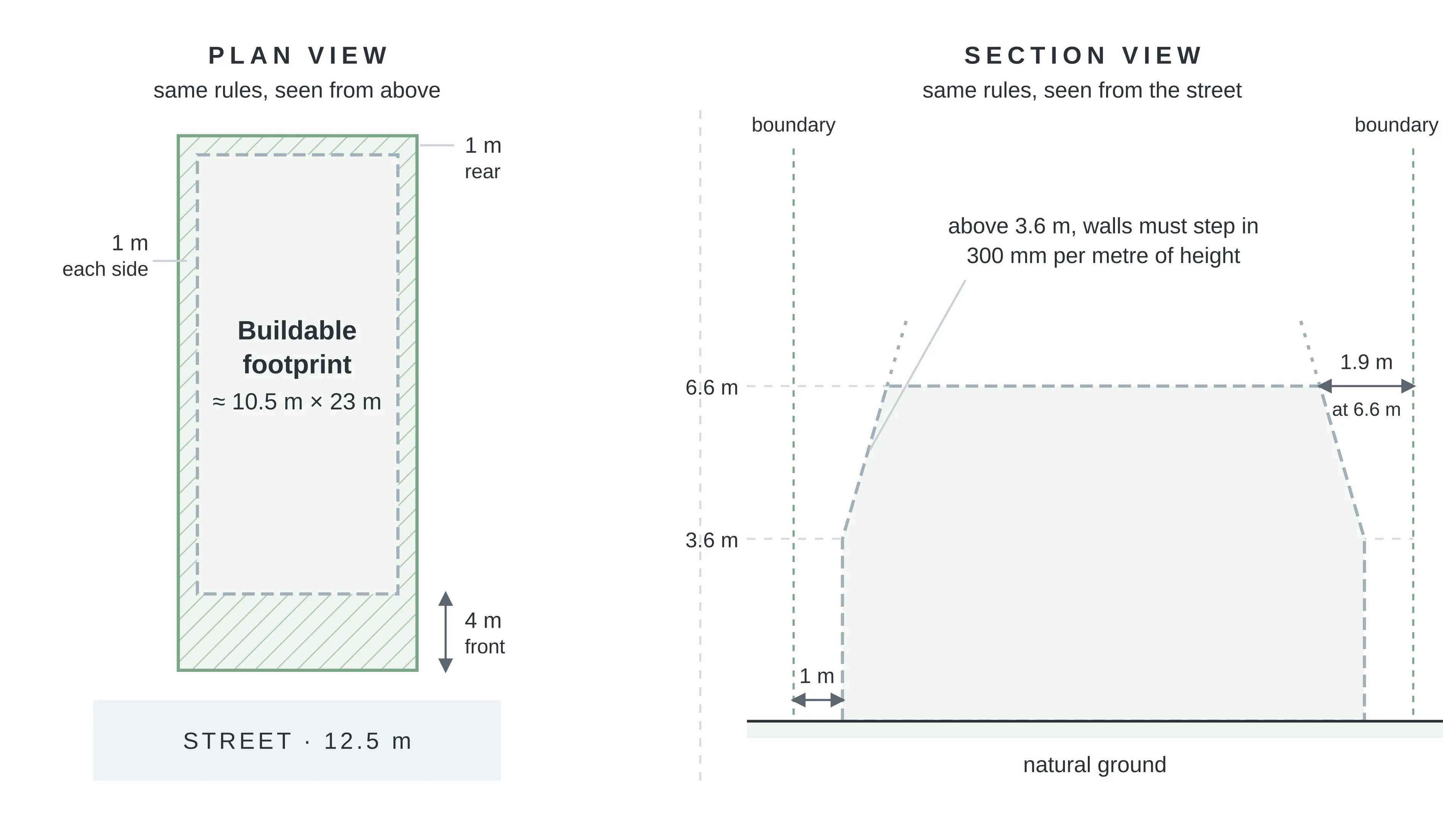

The derived envelope can narrow as wall height increases because side and rear setback requirements may increase for taller walls. In Victoria a side or rear wall may stand 1 m from the boundary only while it is 3.6 m tall or less; above that, the regulations add 300 mm of setback for every metre of extra height, so a 6.6 m two-storey wall must stand 1.9 m from the boundary, nearly double the single-storey figure¹. This is a derived figure from the regulation's formula: 1 m, plus 0.3 m for each of the three metres of height above 3.6 m.

Queensland's rules use stepped clearances rather than a per-metre increase: the Queensland Development Code's 1.5 m side and rear clearance applies to walls 4.5 m or less, and the clearance steps up to 2 m for walls between 4.5 m and 7.5 m²³. NSW's 0.9 m side setback likewise assumes low walls: it applies to walls at or below 4.5 m on lots more than 10 m and up to 18 m wide, or at or below 5.5 m on lots 6–10 m wide⁴.

As a result, the upper storey of a two-storey home may need to sit further inside the lot than the ground floor. On narrow lots, this can reduce the width available for the upper level, unless an applicable rule allows a boundary-wall design to be built on or closer to the boundary.

The documents that show a lot's building envelope differ by state and estate. In NSW, the deposited plan and its section 88B instrument, in Victoria the plan of subdivision and any MCP its restriction references, and in the Queensland estates reviewed per-lot requirements can appear in plans supplied with the sales contract.

In NSW, per-lot restrictions can be recorded through the deposited plan (NSW's registered plan of subdivision) as a section 88B instrument, the schedule that creates easements, restrictions and covenants when a plan is registered: the Registrar-General's guidelines describe section 88B of the Conveyancing Act 1919 as enabling the creation of easements, restrictions on use and positive covenants upon the registration of a plan¹². Both are ordered through an NSW LRS authorised broker; the easement explainer covers the search mechanics and prices.

In Victoria, the plan of subdivision can carry a restriction referencing the estate's MCP, retained by the Registrar of Titles under section 91A of the Transfer of Land Act 1958. An MCP allows provisions that apply across multiple lots to be contained in a single registered document¹³. The MCP can contain the envelope diagrams, profile diagrams and written notes. The Copy of Plan is ordered via LANDATA (Victoria's land-title document ordering service), followed by the MCP where one is referenced.

In the Queensland estates reviewed, the operative document may sit outside the titles register. Depending on the estate, this can include a stage POD approved by the council or EDQ, a Setback Plan at Yarrabilba, or a Building Envelope Plan at North Harbour, supplied with the sales contract. A Titles Queensland search shows the plan and registered interests, but may not include these estate-specific documents.
